Air Dome Structures

Build Big. Build Fast. Build Smarter.

Need a large, column-free space without the cost and time of conventional construction? ClearSpan’s Air Dome Structures offer a high-performance alternative—engineered using architectural membrane technology and supported by controlled air pressure.

From temporary facilities to permanent buildings, air domes redefine how modern infrastructure is built.

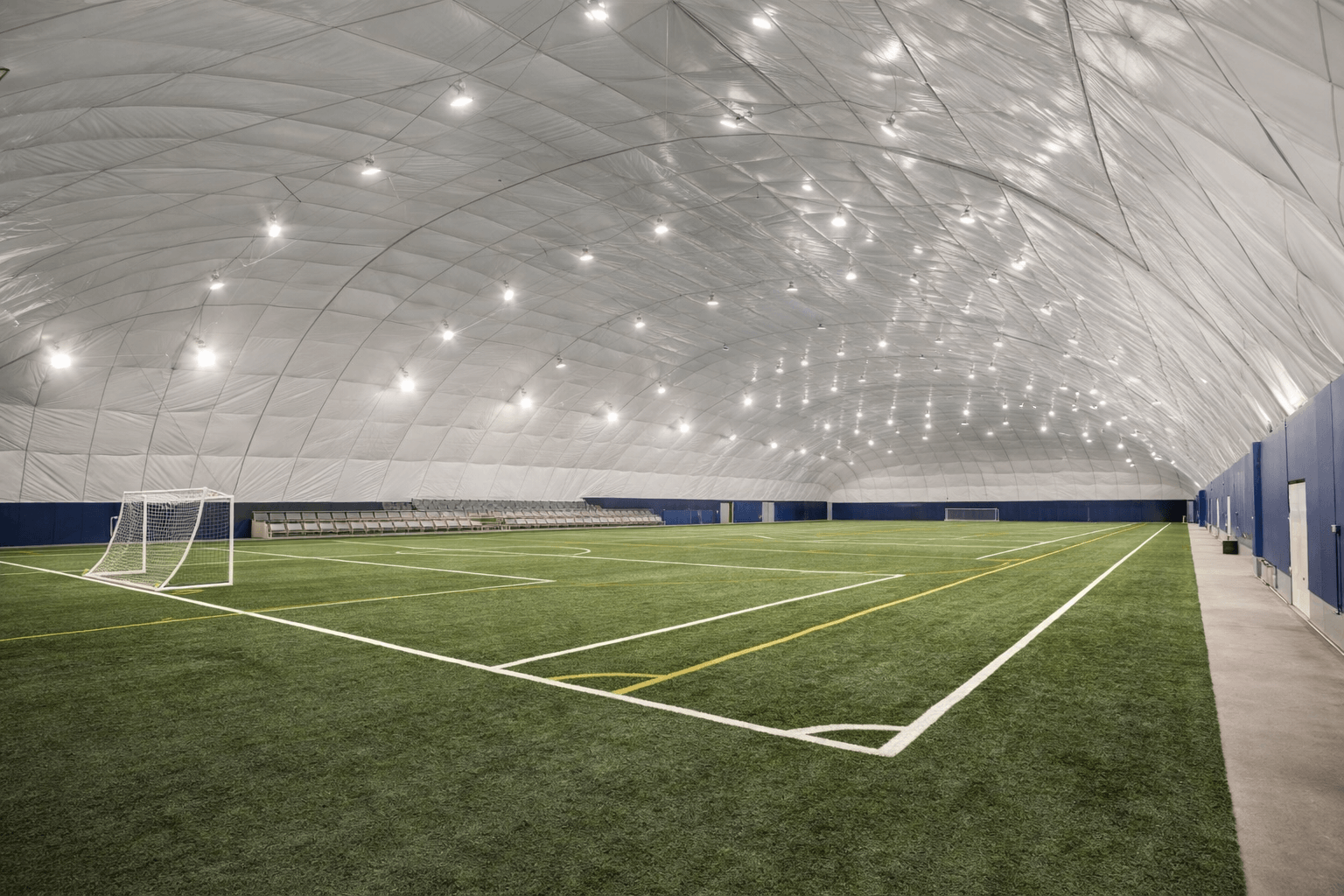

What Is an Air Dome?

Inflatable architecture. Real-world performance.

An Air Dome is an inflatable structure formed using a high-strength architectural membrane as an outer shell, supported by the pressure difference between internal and external air.
The entire structure is stabilised using a specialised airtight anchoring system and an integrated electromechanical control unit.
  • No beams
  • No columns
  • No heavy civil work
service3

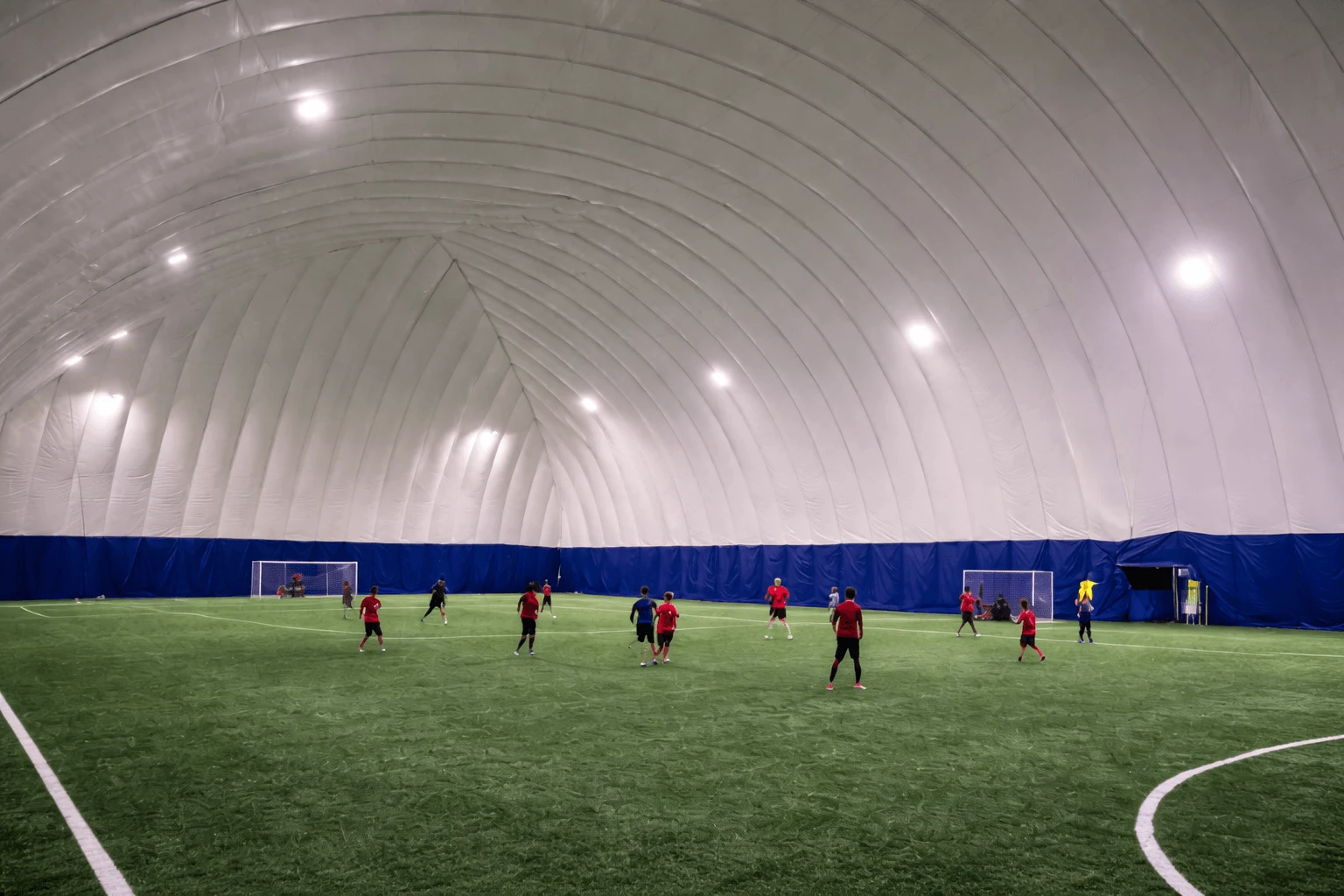

Not a Tent. A True Building System.

Unlike basic inflatable or tent-like structures, an Air Dome Structure functions as a fully compliant architectural building.
  • Can be permanent (20–30 years lifespan)
  • Can be seasonal or removable
  • Meets national and international building load standards
service2

Why Choose an Air Dome?

STEP 1

icon
Lower Cost. Faster Delivery.
Lower Cost. Faster Delivery.
  • 30–40% lower construction cost than traditional buildings
  • On-site installation in just 7–15 days

STEP 2

icon
Maximum Space Utilisation
Maximum Space Utilisation
  • Clear span up to 110m
  • Completely beamless & column-free interior

STEP 3

icon
Built for Extreme Conditions
Built for Extreme Conditions
  • Withstands 12-grade winds
  • Designed for 30 cm snow load
  • Operates from -40°C to +70°C
Constant Comfort

Constant Comfort. Clean Air.

Designed for environments where air quality matters.

  • Constant temperature & humidity
  • Air circulation 6–16 times per hour
  • Fresh air intake exceeding 60m³/hour/person
  • PM2.5 filtration with positive pressure environment

Ideal for sports facilities, storage zones, and people-centric spaces

Smart Engineering Behind Every Dome?

Architectural Membrane Materials
  • PVDF / PVF architectural membrane
  • High tensile strength
  • Corrosion & weather resistant
Structural & Support System
  • Steel or aluminium supporting frames
  • Advanced air pressure system
  • Precision anchoring and foundation integration
Designed to Handle Wind & Snow — Automatically
  • Smooth membrane prevents snow accumulation
  • Automatic pressure adjustment during heavy snowstorms
  • Optional snow removal devices for extreme regions
Built to withstand once-in-50-year wind events.

Integrated Systems. Zero Guesswork.

icon
Electromechanical System
  • Inflation system
  • Temperature & pressure control
  • Real-time monitoring via PC or mobile app
icon
Lighting System
  • Diffused natural daylight
  • Glare-free artificial lighting
  • Uniform illumination across large spans
icon
Access & Safety
  • Emergency exits
  • Vehicle entry/exit doors
  • Multi-level safety mechanisms

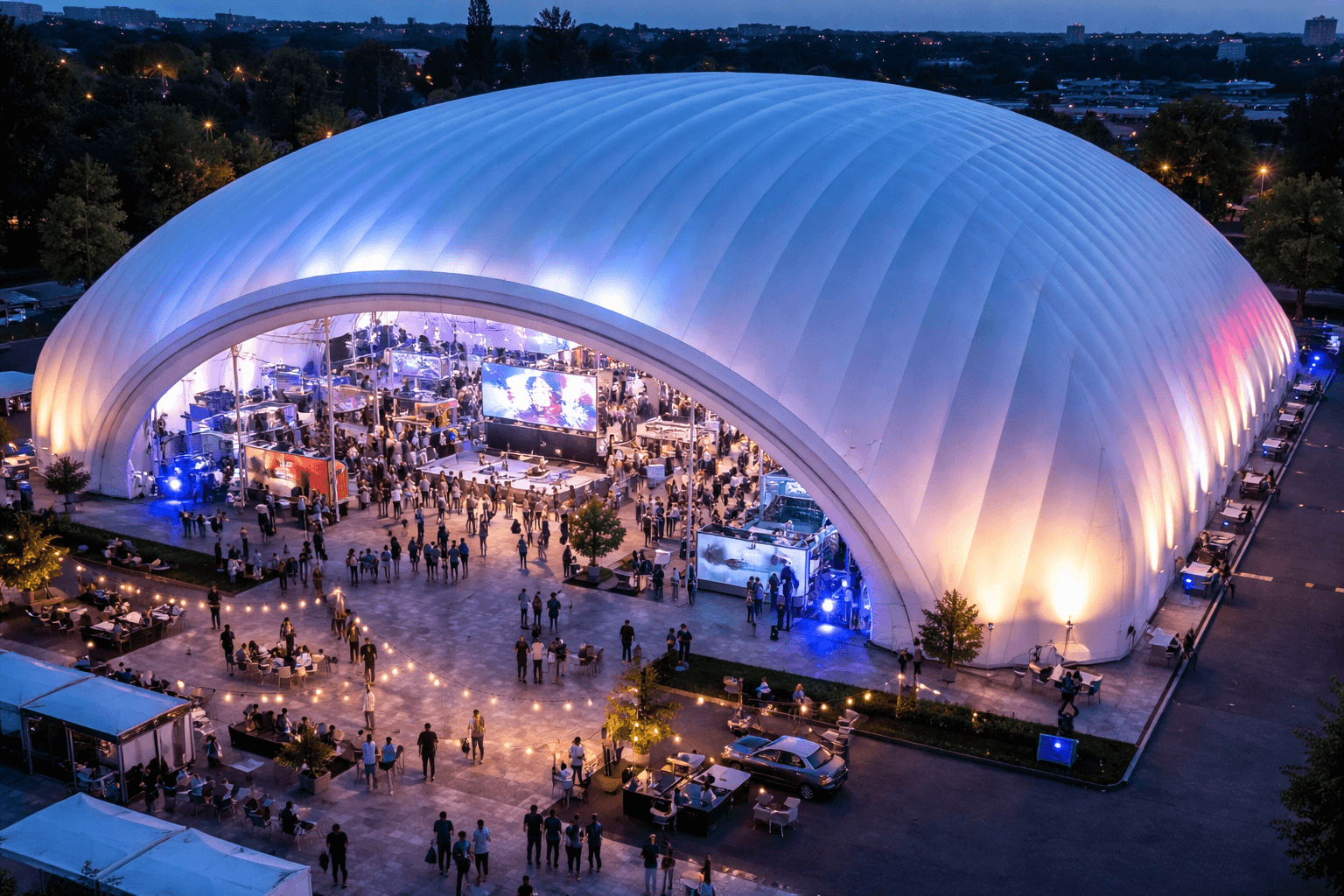

Air Dome vs Conventional Steel Structures

Less weight. More efficiency.

  • Air Dome weight: 2.5–5 kg/m²
  • Steel structure weight: 20–40 kg/m²
  • Faster installation
  • Easier dismantling & relocation
  • Better daylight distribution
  • Lower long-term operational cost
Less weight

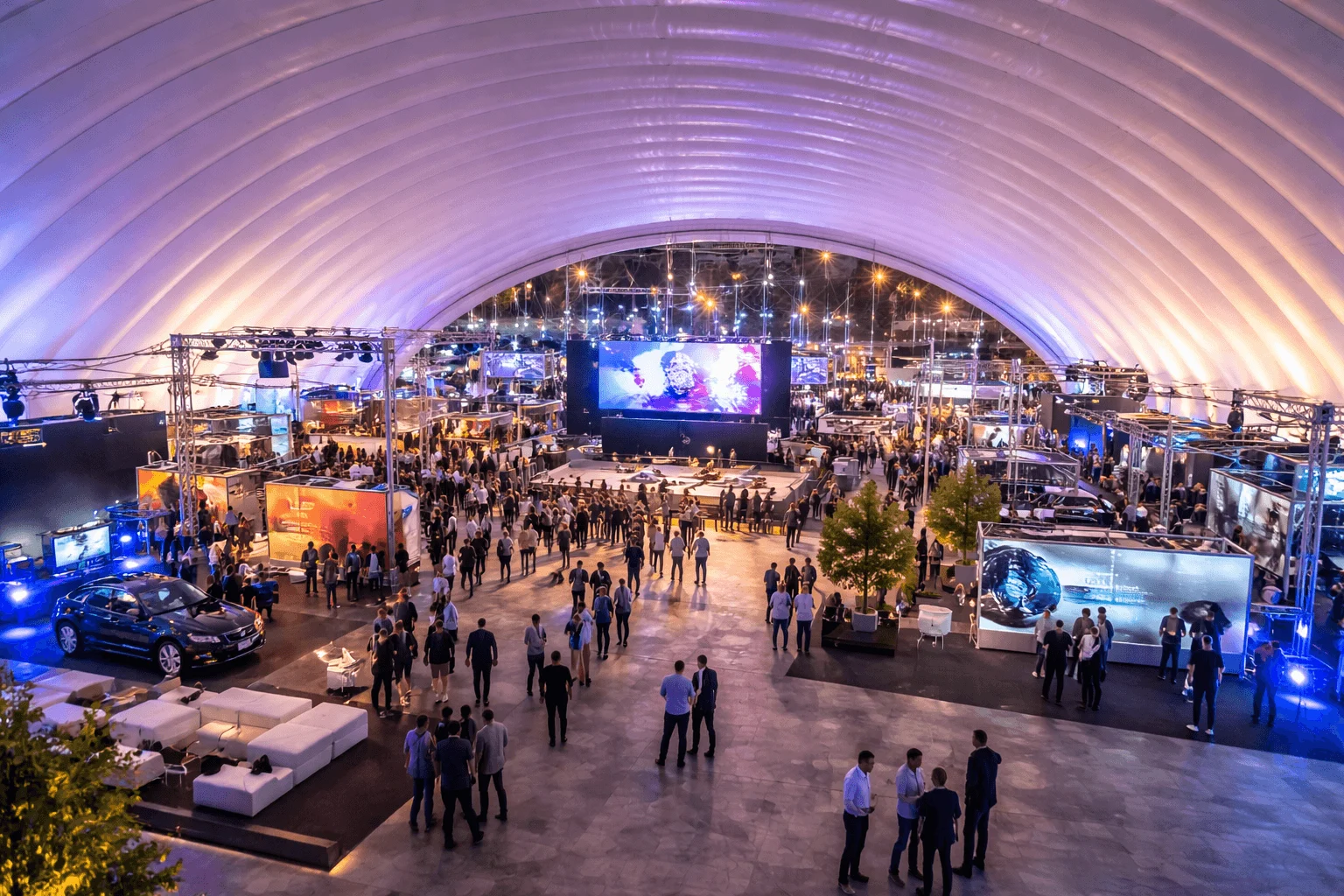

Clean Construction. Minimal Impact.

  • No wet work
  • No dust emissions
  • No construction waste
  • Environment-friendly process

A smarter way to build with ClearSpan India—without damaging the site.
Clean Construction

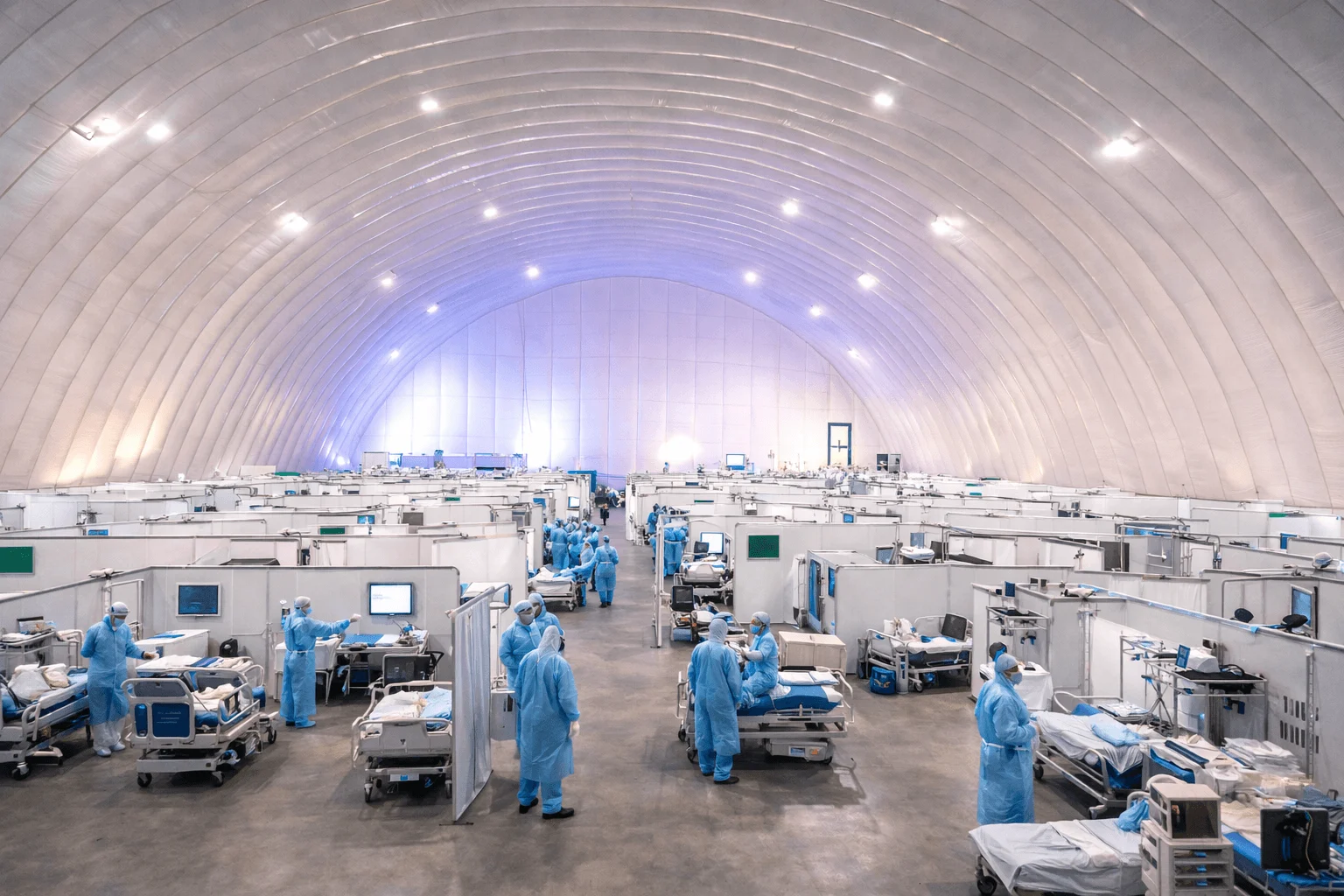

Where Air Dome Structures Work Best

  • ✔ Sports & recreational facilities
  • ✔ Warehousing & logistics
  • ✔ Industrial production zones
  • ✔ Aviation & maintenance spaces
  • ✔ Emergency & disaster response
  • ✔ Large public infrastructure
  • ✔ Construction Sites
Where Air Dome

Built by ClearSpan Structures India Pvt. Ltd.

We deliver end-to-end Air Dome solutions—from design and engineering to manufacturing, installation, and lifecycle support.
Fast to build. Easy to operate. Designed to last.
